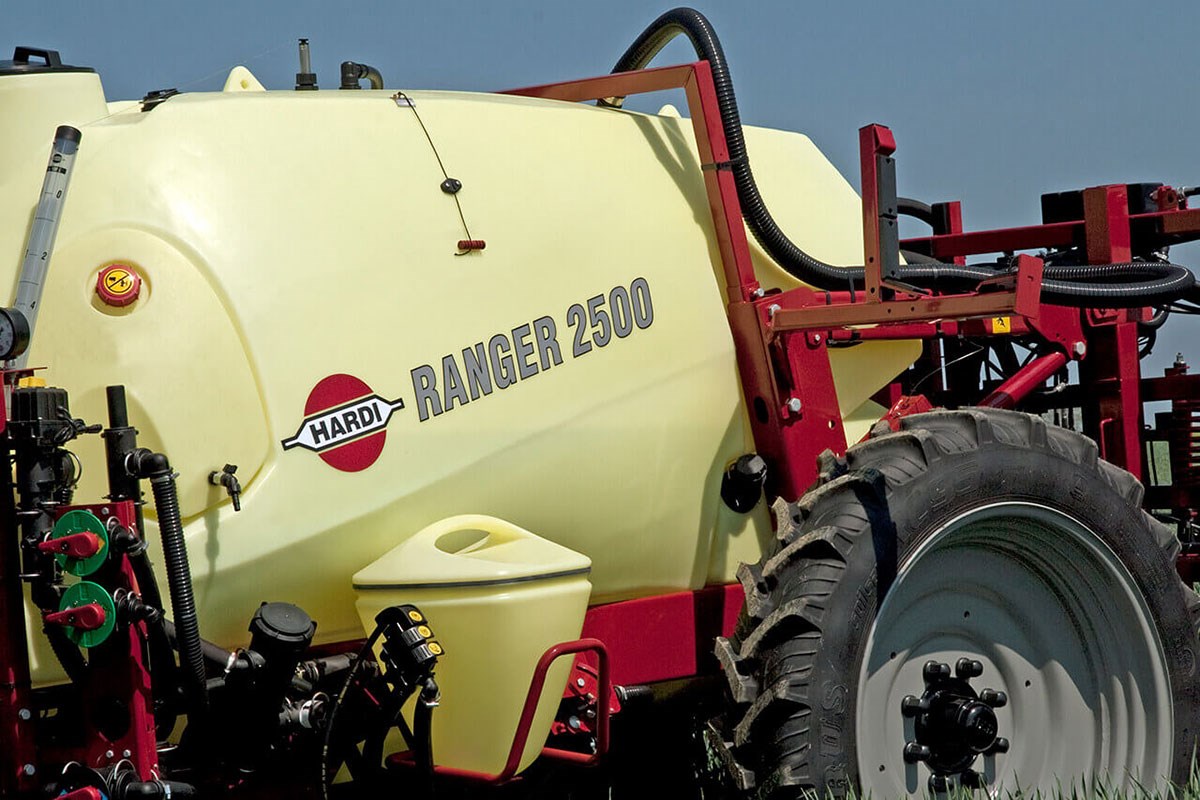

RANGER

SelfSteer

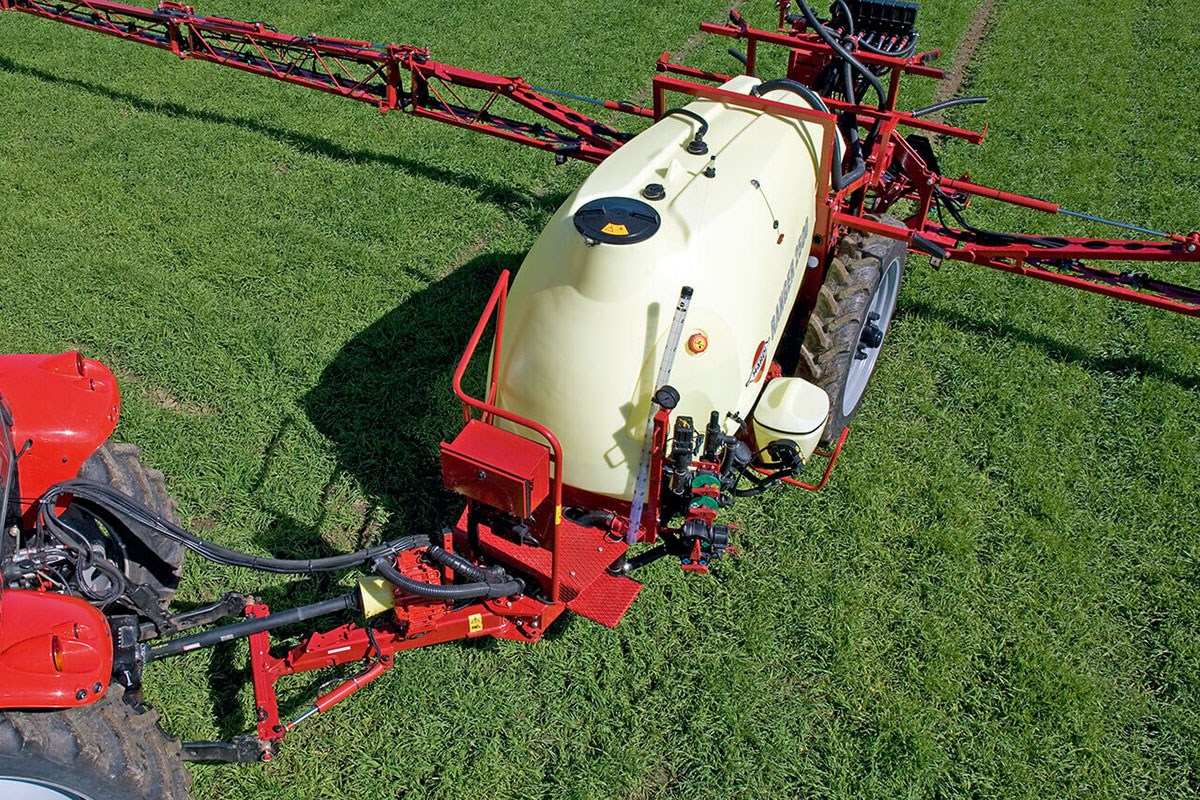

SelfSteer is a simple mechanical steering system with low maintenance and no operation or setting required by the operator during the spray job. The system is coupled to the tractor’s 3-point hitch and gives better tracking on headland. SelfSteer can also be equipped with slope correction, which is manually operated directly from the tractor’s hydraulics to help SelfSteer stay in the tramline in hilly conditions.

Easy, efficient work zone

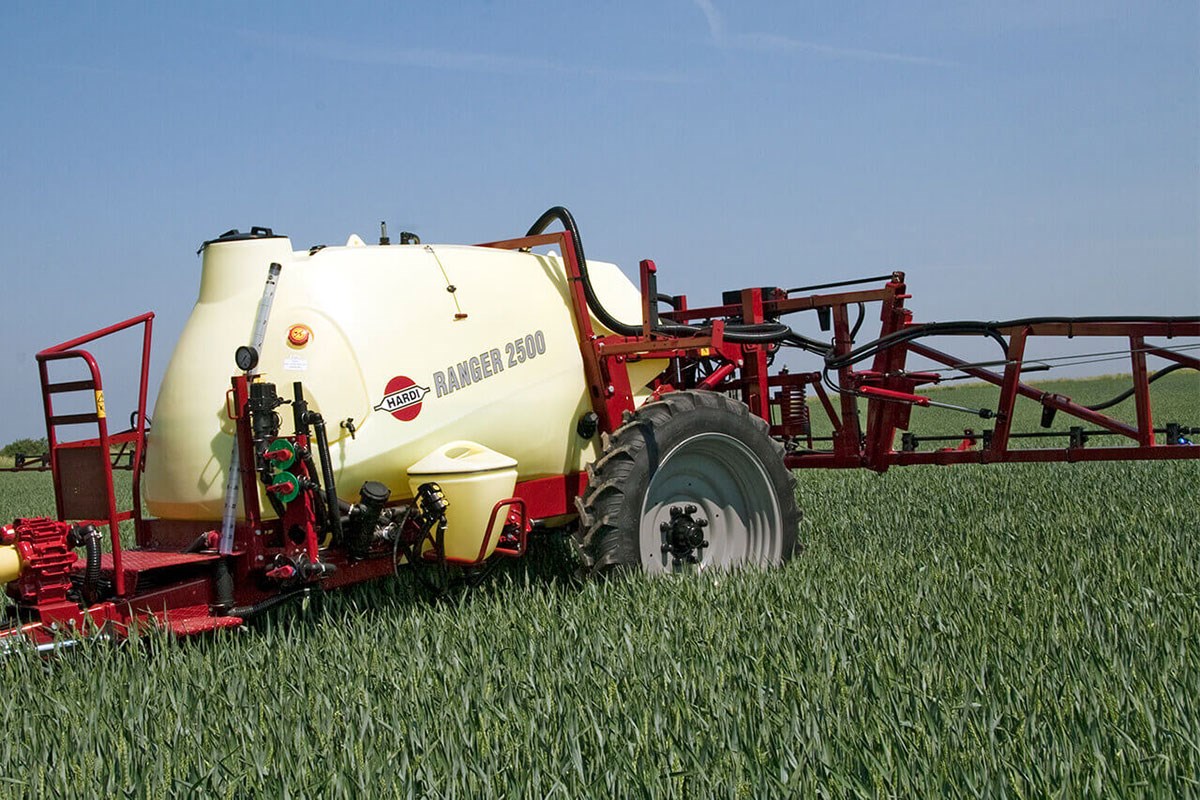

The RANGER work zone gathers all of the sprayer's primary functions into easy-to-reach positions. Everything needed to operate the sprayer is located in the one area, with a clear and logical layout.  The pump manifold system is used to switch between operating features such as tank rinse, tank flushing nozzle and TurboFiller.

TALK TO A SALESPERSON

This field is required
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.
reCAPTCHA is required

For more information on how we collect, hold, use and disclose personal information, please see our privacy policy.

Model Specifications


Boom HYS FALCON EAGLE TWINSTREAM
Tank, l (net) 2500 2500 2500 2500
Pumps, type – l/min 1303 - 114 or 364 - 194 1303 - 114 or 364 - 194 1303 - 114 or 364 - 194 1303 - 114 or 364 - 194
Booms, m 12 12.5, 14, 15, 16.5 18, 20, 21 12, 15
Hydraulic outlets needed (Man.fold models) 1 single + 1 double acting** 1 single acting 1 single + 1 double acting** 1 single + 1 double acting**
Hydraulic outlets needed (Hyd. fold models) 1 double acting** 1 single + 1 double acting** 1 double acting** 1 double acting**
Weight drawbar (empty tank)*, kg 160 200
Weight axle (empty tank)*, kg 1,820 1,540
Weight total (empty tank)*, kg 1,880 - 2,100 1,880 - 2,100 1,740 - 1,880 1,880 - 2,100
Total length (steer / no steer), m 5.80 / 5.93 5.40 / 5,53 5.40 / 5,53 6.10 / 6.23
Total height, m 3.20 2.60 2.90 3.2
Width with boom in transport position*, m 2.40 2.55 2.98 2.40
Track width, m 1.50 - 2.00 1.50 - 2.00 1.50 - 2.00 1.50 - 2.00
Length draw to axle, m 04.35 3.95 3.95 04.35
Ground clearance, m 0.70 (11.2 × 38) 0.70 (11.2 × 38) 0.70 (11.2 × 38) 0.70 (11.2 × 38)
RinseTank (optional), l 250 250 250 250

Dimensions based on standard (14.9 x 28) tyre

* Measurements: EAGLE 18 m, PRO 24 m

**Extra outlets needed for Slant on Y version, and for Slope correction

*** No steer / steer
