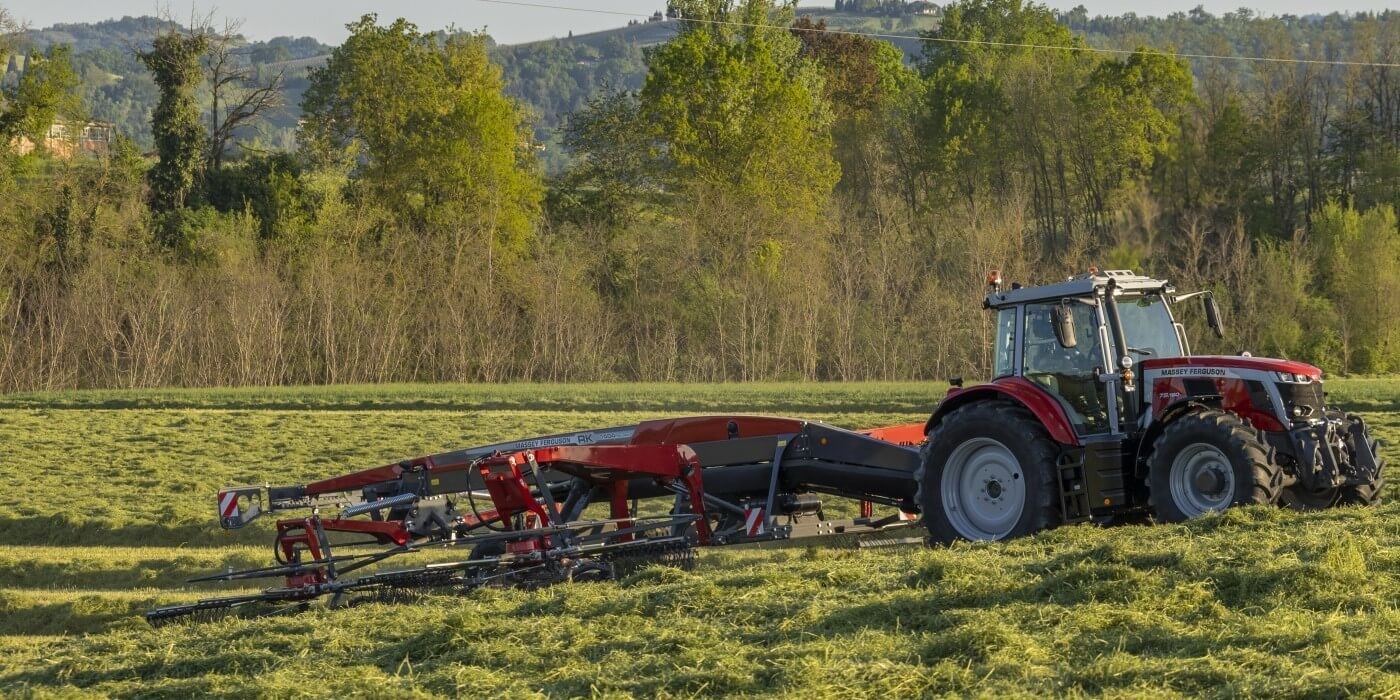

HIGH PERFORMANCE RANGE OF RAKES

Excellent raking quality, easy handling and a durable design - these qualities give you good reason to buy a Massey Ferguson rake.

TALK TO A SALESPERSON

This field is required
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.
reCAPTCHA is required

For more information on how we collect, hold, use and disclose personal information, please see our privacy policy.

Model Specifications


Available Models - Single-Rotor rakes

MODEL MOUNTING CATEGORY WORKING WIDTH (M) TINE ARMS PER ROTOR POWER DEMAND (HP) PTO (RPM)
MF RK 341 DN Cat I and II 3.40 8 23 540
MF RK 361 DN Cat I and II 3.60 10 27 540
MF RK 421 DN Cat I and II 4.20 12 41 540
MF RK 451 DN Drawbar 4.50 12 41 540
MF RK 450 DN Cat I and II 4.50 12 41 540



Available Models - Two Rotor Side Swath Delivery

MODEL MOUNTING CATEGORY WORKING WIDTH (M) TINE ARMS PER ROTOR POWER DEMAND (HP) PTO (RPM)
MF RK 672 SD-TRC Cat I and II 5.80 - 6.70 12 26 540
MF RK 702 SDX-TR Trailed 6.3 - 7.00 12 45 540
MF RK 772 SD-TRC Cat I and II 6.60 - 7.70 12 41 540
MF RK 842 SD-TRC PRO Cat II 7.80 - 8.40 13 60 540



Available Models - Two Rotor Centre Swath Delivery

MODEL MOUNTING CATEGORY WORKING WIDTH (M) TINE ARMS PER ROTOR POWER DEMAND (HP) PTO (RPM)
MF RK 662 TRC Cat I and II 5.80 - 6.60 10 26 540
MF RK 762 TRC Cat I and II 6.80 - 7.60 12 41 540
MF RK 802 TRC PRO Cat I and II 7.20 - 8.00 12 48 540
MF RK 1002 TRC Cat II 8.80 - 10.00 15 70 540



Available Models - Four Rotor Rakes

MODEL MOUNTING CATEGORY WORKING WIDTH (M) TINE ARMS PER ROTOR POWER DEMAND (HP) PTO (RPM)
MF RK 1254 TRC Cat II 12.50 12 80 540

Massey Ferguson Performance

Our technology solutions enhance your tractor performance.


A tractor can only be as good as it its weakest link. MF tractors ensure that the performance and efficiency of the engine, transmission, and hydraulics are optimised to minimise fuel use and maximise output without compromising the environment and requiring a high operator workload.

Massey Ferguson Productivity

We’ve automated functions and operations to boost productivity.


Operation of today’s modern, widest and most sophisticated implements involves a number of functions using the linkage, hydraulics, PTO and transmission, especially on a headland turn. Grouping these functions together or automating them gets the best out of tractor and implement.
